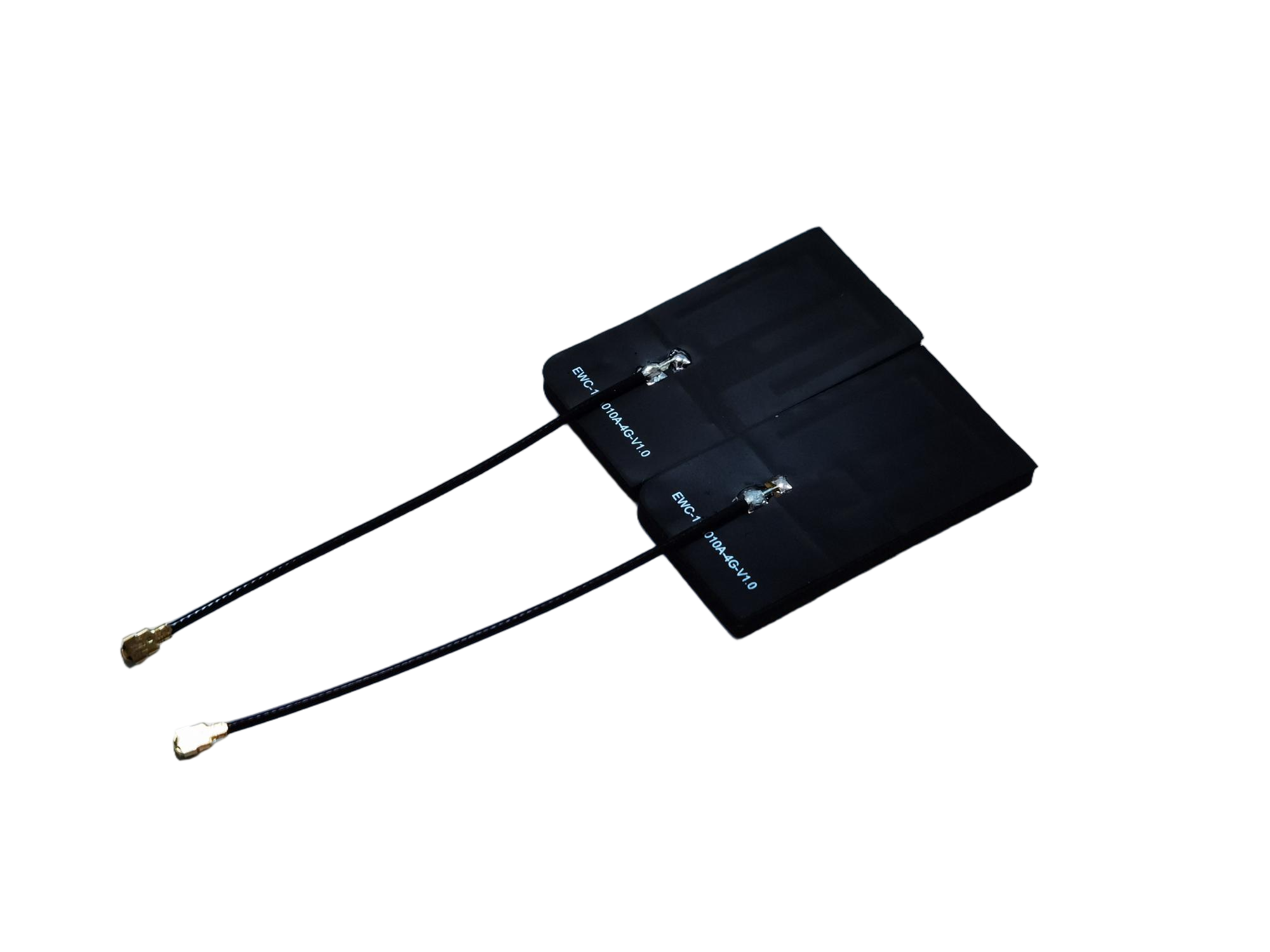

General specification | Mounting type | EVA Paste
| Connector type | IPEX-1
| Dimensions (mm) | 40 x 20 x 3
| Operating temperature | -40°C to +85°C |
Antenna and electrical specifications | Standards | 4G/3G/2G | Frequency (MHz) | 824~960 , 1710~2690 | VSWR | <4.5 , <2.8 | Peak Gain (dBi) | -3.5~0.5 , 1.0~5.0 | Impendance (Ohm) | 50 | Max Input Power (W) | 5
|
|
